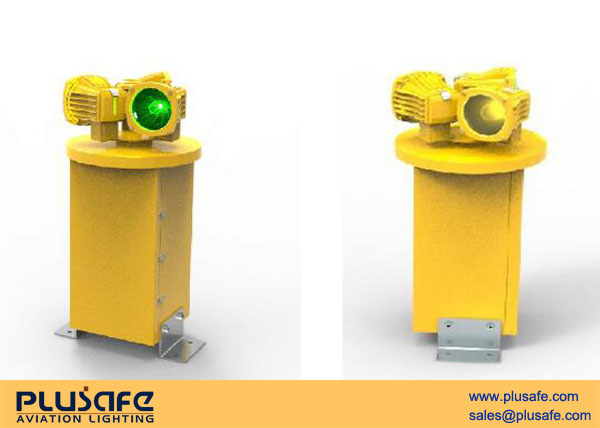

HRB10 Heliport Rotating Beacon

View large
  • Category:
  • Part Number:HRB10,Metal Halide Lamps 3×150W,12RPM/Rotation,37FPM/Flashers,Aviation yellow powerder coating finish,Class I:-22°F to +131°F(-30°to +55°)Class II:-67°F to +131°F(-55°to +55°)...
    Product Description

    Overview
    HRB-10 medium intensity heliport rotating beacon is designed primarily for night operation as identification and location markers for heliports.

    Heliport Applications

    · Surface-level ground heliport
    · Rooftop&Elevated heliport
    · Shipyard&Shipboard
    · Aerodrome

    Compliant
    FAA: AC 150/5345-12, L-801H

    Key Features
    · Three 13,000 lumen, 150 watt metal-halide lamps.
    · 12,000 hours typical lamp life(more than 3 years).
    · One clear, one aviation green and one yellow lens.
    · No maintenance except lamp replacement.
    · All moving parts are permanently lubricated.
    · 12 RPM rotation, 37 flashes/minute.
    · Weatherproof steel cabinet.
    . Casting aluminum housing for the lamps.
    · Spraying painting aviation yellow finish.
    · Lamps preset 5° above horizontal, adjustable.
    · Optional photocell.
    · Mountable on a tipdown pole.
    · Electrical power- 120V AC, 60Hz or 220V~240V AC,
      50Hz or 60Hz.
    · Consumption - Class I: 595W; Class II: 955W.
