8 inch Heliport Perimeter Light is used for night operation. To use omnidirectional green perimeter light lighten the heliport TLOF/FATO edge area.
TLOF lighting system always consist of elevated/flush perimeter lights and floodlighting.
Custom solutions is available like operation voltage, color yellow, blue, red.

Other Options For Order
* HL50---MT:     Marine treated, body made of aluminum with anodized treatment
* HL50---SC:     Switchable dual colors, omnidirectional
* HL50---VB:     Variable brightness controlled, 3 level brightness press buttons on the controller box.

Compliance
- ICAO Annex 14, Volume II, 4th Edition, July,  2013
- FAA  AC150/5390-2C
- Exceeds FAA Engineering Brief 87 Specifications

Features
•  Casting aluminum alloy strong body, gray powder coating finish.
•  Diameter standard 8inch/20.32cm,bolt circle 7.25inch/18.42cm.
•  Overall diameter with base can 22cm.

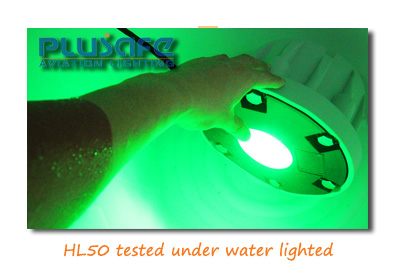

•  Rating IP68.
•  Clear polycarbonate lens very good impact resistance and light beam transmission.
•  Light source using integrated LED with an expectancy lifespan 100,000 hours.
•  Optical designed lens produce friendly and ICAO compliant optical beam.
•  AC85~265V operation voltage applicable.

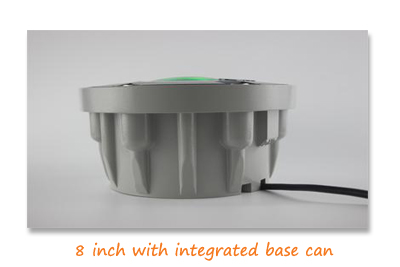

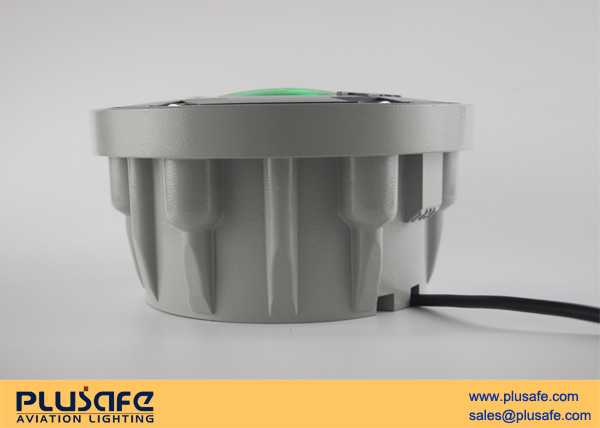

•  Die-casting aluminum base can integrated in the lamp,no need additional cost.
•  Option for 2 ways cable out from bottom / side easy for cable connection.

Application
•  Heliports
•  Surface Heliports
•  Elevated Heliports
•  Offshore
•  Airfield Lighting


Reference



Data Sheet

HL-50 Data Sheet
