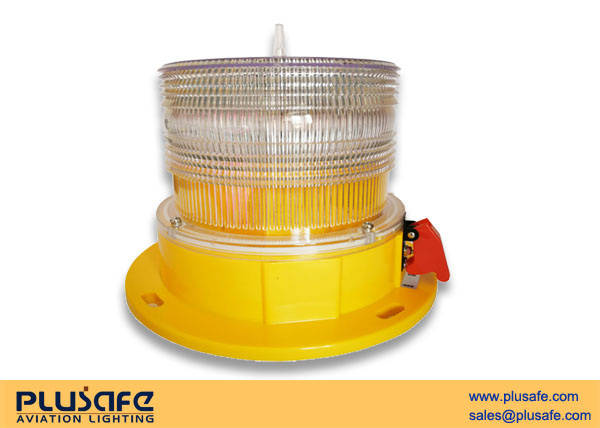

OB10S is a self contained, maintenance free solar powered aircraft warning light. It comes with solar panel and battery without external power supply.
It is used increase conspicuity of structures or obstructions during nighttime.
The light is easy to deploy to almost any condition and any emerge.
Robust body built provides good protection against hash environments.
It is working under steady mode based ICAO&FAA requirement. Users can specify flash mode for purchase requirement.

Compliance
- ICAO Annex 14, Volume I, 6 Edition, July,  2013
- FAA  AC150/5345-43G L810

Features
•  Free maintenance, self contained.
•  IP rating IP68.
•  Aviation yellow painted.
•  Polycarbonate lens of strong impact resistance, good light  transmission.
•  Optic lens design makes beams more concentrate, effective and further.
•  Red, yellow, blue, green, white color available.
•  Light source using LED with an expectancy lifespan 100,000 hrs above.
•  On/Off handle switch easy for using.

Application
•  High-rise building marking
•  Telecom & broadcast
•  Bridge
•  Navigation aid
•  Port
•  Marine Navigation
•  Crane machines
•  Airfield lighting
•  Buoy marking

Note
Users shall leave the light our of warehouse and charge battery every 3 month when the light is in storage.

Data Sheet

Data_Sheet_OB_Solar_Obstruction_Lighting

How Does It Work

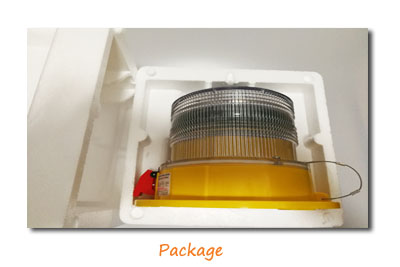

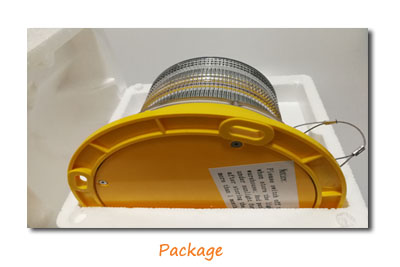

Package
28CM×27CM×27CM/Per Case,2.5KG, Carton box and foams.
